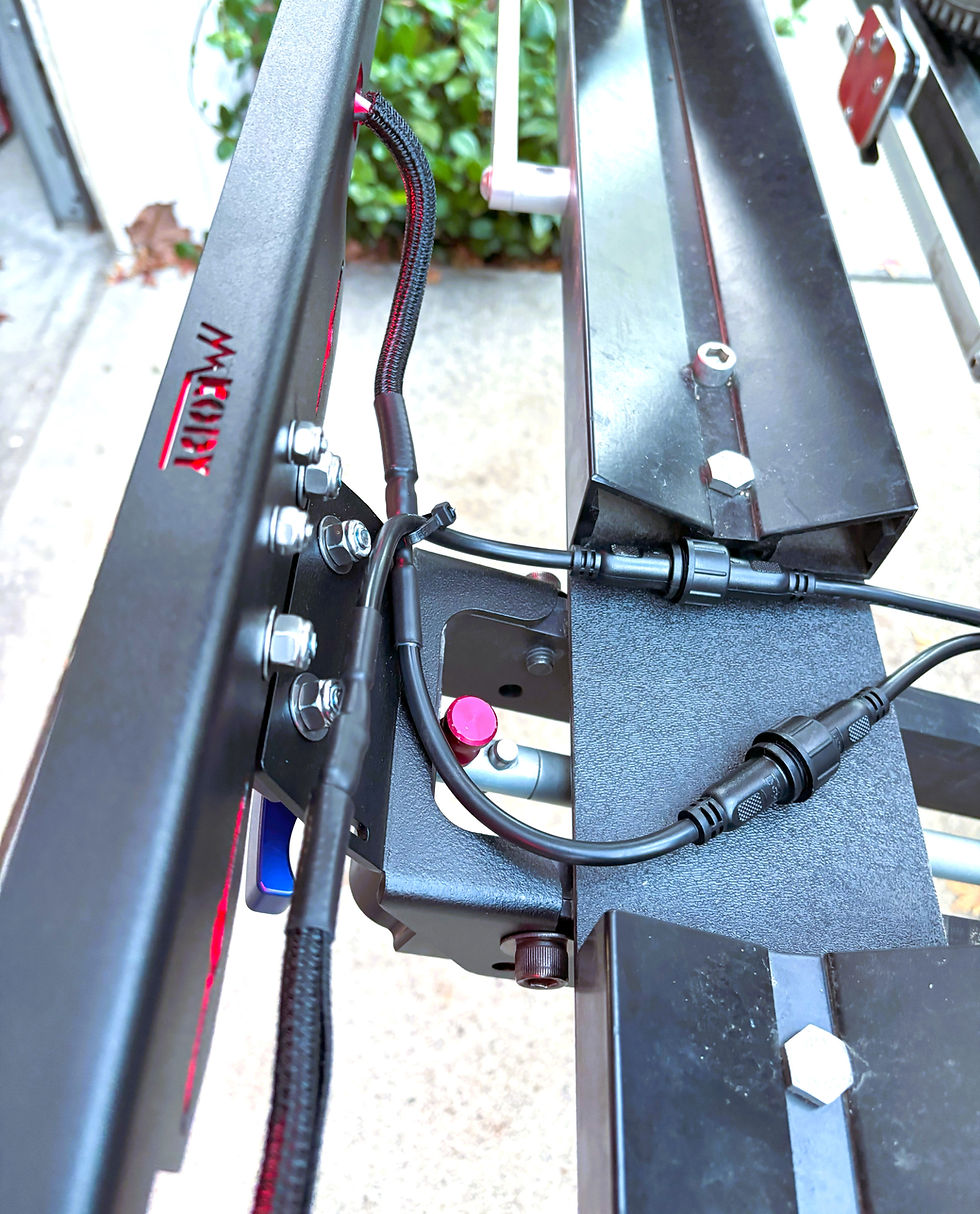

Kody bike rack lights are the brightest and most durable on the market providing peace of mind when using your bike rack.
This light separates the brake, turn and tail lights into two light fixtures. Each light fixture is 12" wide and provides bright, clear and visible signalling. The lights are mounted to our custom heavy duty bracket for mounting to your bike rack. This dual light does not sequence left or right like our single 16" light; it flashes the entire left or right light fixture for turn signals.
The rugged, highly visible Kody Technologies dual 12-inch LED Rack Lights creates eye-catching tail, brake, and turn signals. The light integrates cleanly on your rack and uses a standard 4-pin or 7-blade trailer connector for easy installation.
This rack light is designed specifically for the 1Up Equip-D bike rack. Check out our other Kody Lights for 1Up Bike Racks.
Pivoting Light
The Pivot design allows you to rotate the light fixture for use in both the up / stored position as well as the down / bike loaded position. This light's pivot design uses a friction hinge and does not require any locking mechanism to hold it in place. To position the light just push or pull the light into the desired position.
If you have questions regarding the pivot option please reach out to us or check out our Pivoting FAQ or contact us to discuss.
Cable Lengths
We provide three cable length options. The cable lengths include Short (5'), Long (9') and Super Long (13'). Each cable measures a bit longer than the foot length shown. The Short cable will work in most applications using a standard bike rack with up to four bike trays. Please see our FAQ page for information regarding how to select the right cable length for your rack set up.
License Plates
We have three options for plate holders and a plate light. Please see the list below to understand each option. For more information on our plate options please check out License Plate Holders and Plate Lights. The plate holder varies between the different main trailer light set up.
No Plate Accessory: I just want my light and nothing to do with any license plate holders.
Plate Holder - No Light: Plate holder with no electrical connection or light. This includes a bracket mounted to the main light which provides a licence plate mounting location and plate mount hardware
Plate Holder - With Light: Plate holder with plate light. This includes the plate holder mentioned above as well as a second bracket to install the plate light, integrated cable wiring and the plate light.
Vehicle Connections and Reverse Light
For this option, choose between a standard four pin connector, a seven blade connector or a seven blade connector with reverse lights. The four pin connection powers tail lights (including plate lights if added), turn signals and brake lights. Upgrading to the seven blade option adds a heavier duty cable, a seven pin connector and a licence plate light connector (we call it plate ready). Choose the correct connection to eliminate the need for adapters and prepare for future upgrades. Seven blade is required for reverse lights.
Select No Reverse Light or Add Reverse Light. The light bracket is designed to hold two lights which will be powered from the main cable two pin connection and a two pin splitter.
Configuration and Pricing Note: The total light set up pricing will not populate or update until you have made a selection for all options. Once the selections are completed and the price is updated you can adjust your selections one at a time to see how the price varies.
If you have any questions please contact us and we can discuss in more detail.
Equip-D 1Up Bike Rack - Pivoting Double 12" Light
- Incredibly bright LEDs and reflectors to clearly communicate your signals.
- Dual 12" wide, LED Light Bar with tail, brake and turn signal.
- This dual light does not sequence left or right like our single light; it flashes the entire fixture for turn signals.
- Custom designed bracket made from 11 gauge cold rolled steel.
- Powder coated black for durability and sleek aesthetics.
- Light is mounted to the bracket with stainless steel hardware (socket head cap screws, washers and nylon lock nuts) for corrosion resisitance and to not rattle loose.
- Rigidly mounts to the rack for clean, seamless and rugged looking fit.
- Excellent Product Video by Richard (YouTube)
- Installation Instructions (same as the single light)
- Video Install Instructions (YouTube)
- IP67 waterproof and fully submersible construction, designed to resist water and dust intrusion for exceptional all-weather durability.
- Wiring Harness with standard 4-Pole Flat Trailer Connector and 60" (short), 108" (long) or 156" (super long) cable lead.
- Simple installation using existing bike rack hardware.
- Designed specifically for the 1Up Equip-D bike rack.
- Inside the box: Rack Light Assembly, Installation Hardware, Cable Ties and a couple Cool Stickers.
- One Year Product Warranty
