Kody lights are the brightest and most durable on the market providing peace of mind when using your bike rack.

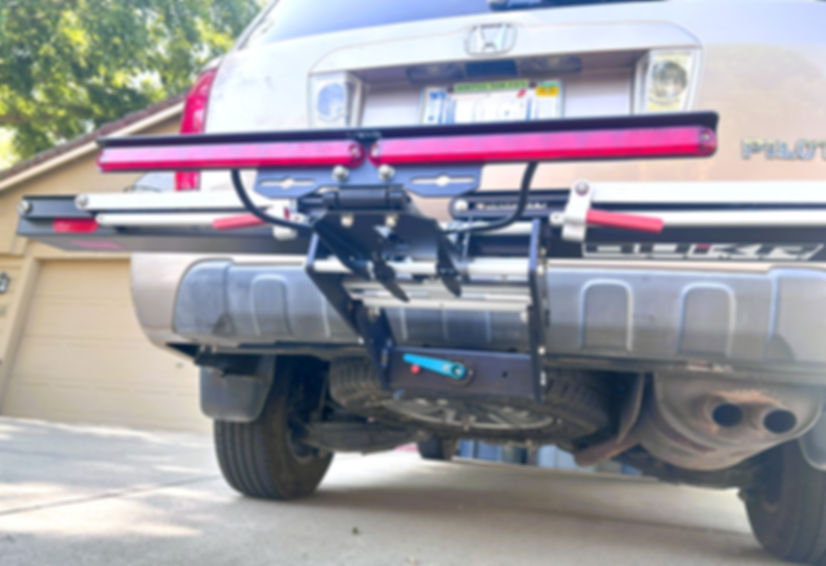

This light is our medium sized light set which uses two brake, turn and tail lights for independent left and right hand signals.  Each light fixture is 12 to 13" wide and provides bright, clear and visible signaling.  The lights are mounted to our custom heavy duty bracket for mounting to your bike rack.   The total width of the lights and bracket is just under 27" wide.

The rugged, highly visible Kody Technologies dual LED Rack Lights creates eye-catching tail, brake, and turn signals. The light integrates cleanly on your rack and uses standard 4-pin or 7-blade trailer connector for easy installation.

The lights are installed on our custom heavy duty bracket for mounting to your bike rack.   The lights installs centered on the end of the Mach2 bike rack and is strapped in place using stainless steel hose clamps or Voile Straps.

This rack light is designed specifically for use on the QuikrStuff Mach2 bike rack.  Check out our other Kody Lights for QuikrStuff Bike Racks.

Pivoting Light
The Pivot design allows you to rotate the light fixture for use in both the up / stored position and the down / bike loaded position.  This light's pivot design uses a friction hinge and does not require any locking mechanism to hold it in place. To position the light just push or pull the light into the desired position.

If you have questions regarding the pivot option please reach out to us or check out our Pivoting FAQ or contact us to discuss.

With or Without a Mach2 Bike Ramp
We provide two options for the rack mount bracket.
Without Ramp: Short Bracket to keep the light tucked up close to the bike rack.
With Ramp: Long Bracket for use with the Mach2 bike ramp.  This bracket extends the light position out past and under the ramp.  This allows the bike ramp to be loaded and unloaded with the light in place.

Mounting Method
We have a couple mounting methods for this light.  This light installs using the same method as the bike tray add-ons but is centered between the tray mounts making space for the ramp when used.  The light can be clamped in place with either Voile Straps or Metal Hose Clamps with rubber shielding.  This mount is very rigid and holds the light in place very securely.
Two Voile Straps:   The two Voile straps allow for quick removal and relocation when adding or removing bike trays.
Two Metal Hose Clamps:  The two metal hose clamps have a rubber coating to protect metal surfaces and to look nice.  This option creates a more secure and permanent install.
If you're interested in both mount options you can also buy them separately on our Accessories page.

We also sell metal locking clamps as a security measure to make if more difficult to remove the light.  Click this link (coming soon) to learn more and purchase these security brackets and hardware.

Vehicle Connections and Reverse Light
For this option, choose between a standard four pin, seven blade connector or seven blade with reverse lights.
Four Pin Connection: Comes with a standard flat four pin trailer connector and powers tail lights (including plate lights if added), turn signals and brake lights.
Seven Blade Connection: Upgrade to the seven blade connector option. This addes a heavier duty cable, a seven pin connector which can power reverse lights and a licence plate light connector (we call it plate ready).  Choose the correct connection to eliminate the need for adapters and prepare for future upgrades.  Seven blade is required for reverse lights.
Seven Blade plus Reverse Lights: Add the seven blade option and reverse lights to your light set up.  This adds all the seven blade content from above plus two reverse lights and the electrical connections on the seven blade cable to power them.

License Plate Holders
We have four options for plate holders and a plate light.  Please see the list below to understand each option.
No Plate Accessory: I just want my light and nothing to do with any license plate holders.
Plate Light Ready: Adds a plate light electrical connection to the main cable, ready for a future plate light upgrade. No plate holder is included with this option.  This option is included at no extra cost with the seven blade connection, which already carries the plate light connector.
Plate Holder - No Light: Plate holder with no electrical connection or light. This includes a bracket mounted to the main light which provides a license plate mounting location and plate mount hardware.
Plate Holder with Light: Plate holder with plate light. This includes the plate holder mentioned above as well as a second bracket to install the plate light, integrated cable wiring and the plate light.
Plate Holder Caution – If the plate holder sits above your vehicle's height when stored, it can catch wind and cause the friction hinge to shift over time. Always ensure your rack is lower than your vehicle to prevent this issue.

Cable Lengths
We offer three cable length options.  The cable lengths include Short (70"), Long (116") and Extra Long (164").  The Short cable will work in most applications using a standard bike rack with up to four bike trays.  Please see our FAQ page for information regarding how to select the right cable length for your rack set up.

Configuration and Pricing Note: The total light set up pricing will not populate or update until you have made a selection for all options.  Once the selections are completed and the price is updated you can adjust your selections one at a time to see how the price varies.

If you have any questions please contact us and we can discuss in more detail.
