We recommend double lights on newer Fords and Tesla Model YsContact Us with questions.

Kody lights are the brightest and most durable on the market providing peace of mind when using your bike rack.



The rugged, highly visible Kody Technologies LED Rack Light creates eye-catching tail, brake, and turn signals. This light separates the brake, turn and tail lights into independant left and right hand light fixtures.  Each light fixture is 16" wide and provides bright, clear and visible signalling.  The total width of the lights and bracket is just under 33" wide.



The lights are installed on our custom heavy duty bracket for mounting to your bike rack.   The lights sets in place centered on the end of the Mach2 bike rack and is strapped in place using stainless steel hose clamps or Voile Straps.



This rack light is designed specifically for use on the QuikrStuff Mach2 bike rack.  Check out our other Kody Lights for QuikrStuff Bike Racks.


Pivoting Light

The Pivot design allows you to rotate the light fixture for use in both the up / stored position and the down / bike loaded position.  This light's pivot design uses a friction hinge and does not require any locking mechanism to hold it in place. To position the light just push or pull the light into the desired position.



If you have questions regarding the pivot option please reach out to us or check out our Pivoting FAQ or contact us to discuss.



With or Without a Mach2 Bike Ramp

We provide two options for the rack mount bracket.

Without Ramp: Short Bracket to keep the light tucked up close to the bike rack.

With Ramp: Long Bracket for use with the Mach2 bike ramp.  This bracket extends the light position out past and under the ramp.  This allows the bike ramp to be loaded and unloaded with the light in place.



Mounting Method

We have a couple mounting methods for this light.  This light installs using the same method as the bike tray add ons but is centered between the tray mounts making space for the ramp when used.  The light can be clamped in place with either Voile Straps or Metal Hose Clamps with rubber shielding.  This mount is very rigid and holds the light in place very securely.

Two Voile Straps:   The two Voile straps allow for quick removal and relocation when adding or removing bike trays.

Two Metal Hose Clamps:  The two metal hose clamps have a rubber coating to protect metal surfaces and to look nice.  This option creates a more secure and permanent install.

If you're interested in both mount options you can also buy them separately on our Accessories page.



We also sell metal locking clamps as a security measure to make if more difficult to remove the light.  Click this link (coming soon) to learn more and purchase these security brackets and hardware.



Cable Lengths

We offer three cable length options.  The cable lengths include Short  (5'), Long (9') and Super Long (13').   Each cable measures a bit longer than the foot length shown.  The Short cable will work in most applications using a standard bike rack with up to four bike trays.  Please see our FAQ page for information regarding how to select the right cable length for your rack set up.



Vehicle Connections and Reverse Light

For this option, choose between a standard four pin, seven blade connector or seven blade with reverse lights.

Four Pin Connection: Comes with a standard flat four pin trailer connector and powers tail lights (including plate lights if added), turn signals and brake lights.

Seven Blade Connection: Upgrade to the seven blade connector option. This addes a heavier duty cable, a seven pin connector which can power reverse lights and a licence plate light connector (we call it plate ready).  Choose the correct connection to eliminate the need for adapters and prepare for future upgrades.  Seven blade is required for reverse lights.



Double 16" Light Options

We offer four different 16" wide light fixture options;

  • Basic brake/turn/tail light, clear lens with red LED lights (we also have a red lens, if you're interested please let us know your preference)
  • Basic Red Lens brake/turn/tail light  with added reverse lights
  • Basic brake/turn/tail light with built in reverse, clear lens with red LED lights for stop/tail/turn and white reverse lights.
  • Sequencing light with red lens - animates the left and right hand turn signals
  • Sequencing light (red lens) with added reverse lights

Each light option is very bright and will help you be seen on the road.  Reverse light requires a seven blade trailer connector.



License Plate Holders

License plate holders can be ordered separately on our plate holder product page.  We don't normally recommend using a license plate holder with this light application.  It can be done but might result in issues holding position.  In the stored position this heavier light can sit above the vehicle and in direct wind.  This position is where we are concerned with it holding position at freeway speeds.  Please reach out and we can discuss your application.  Here's some information on our plate holder options.

We have three options for plate holders and a plate light.  Please see the list below to understand each option.

No Plate Accessory: I just want my light and nothing to do with any license plate holders.

Plate Light Only: Add Plate Light and Plate Light Connection to connect and mount onto the QuiKrStuff plate holder.

Plate Holder - No Light: Plate holder with no electrical connection or light. This includes a bracket mounted to the main light which provides a licence plate mounting location and plate mount hardware

Plate Holder - With Light: Plate holder with plate light. This includes the plate holder mentioned above as well as a second bracket to install the plate light, integrated cable wiring and the plate light.


Configuration and Pricing Note: The total light set up pricing will not populate or update until you have made a selection for all options.  Once the selections are completed and the price is updated you can adjust your selections one at a time to see how the price varies.



If you have any questions please contact us and we can discuss in more detail.

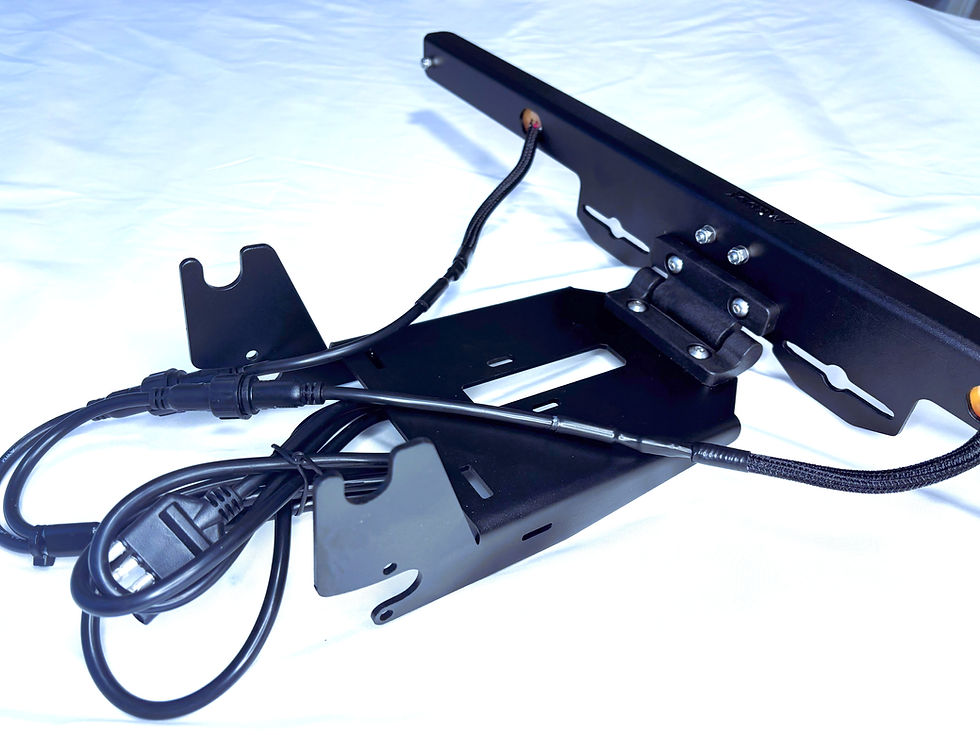

QuikR Mach2 Bike Rack - Pivoting Double 16" Light

PriceFrom $245.00
Quantity
    • Incredibly bright LEDs and reflectors to clearly communicate your signals.
    • Dual 16" wide, LED Light Bar with tail, brake and turn signal.
    • This dual light does not sequence left or right like our single light; it flashes the entire fixture for turn signals.
    • Custom designed bracket made from 11 gauge cold rolled steel.
    • Powder coated black for durability and sleek aesthetics.
    • Light is mounted to the bracket with stainless steel hardware (socket head cap screws, washers and nylon lock nuts) for corrosion resisitance and to not rattle loose.
    • Rigidly mounts to the rack for clean, seamless and rugged looking fit.
    • Mach2 Light Installation Instructions (pdf)
    • DOT FMVSS-108 & submersible IP67 rated
    • IP67 waterproof and fully submersible construction, designed to resist water and dust intrusion for exceptional all-weather durability.
    • Wiring Harness with standard 4-Pole Flat Trailer Connector and 60" (short), 108" (long)  or 156" (super long) cable lead.
    • Simple installation with added hardware.
    • Designed specifically for the QuikrStuff Mach2 bike rack.
    • Inside the box: Rack Light Assembly, Cable Ties, Installation Hardware and a couple Cool Stickers.
    • One Year Product Warranty
